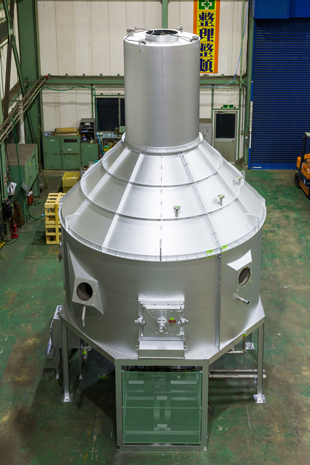

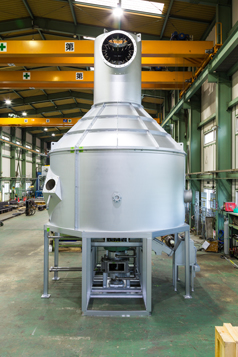

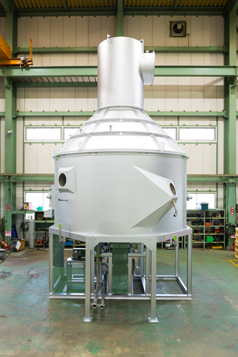

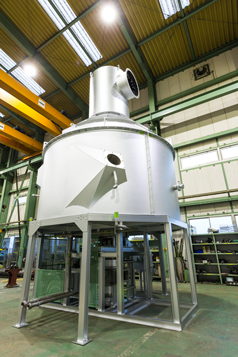

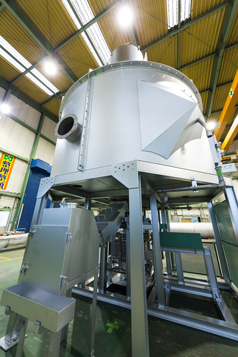

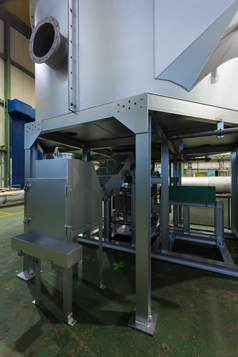

The vortex incinerator is a high-performance machine used for diverse applications. Since its launch, we have delivered several hundred of these incinerators.

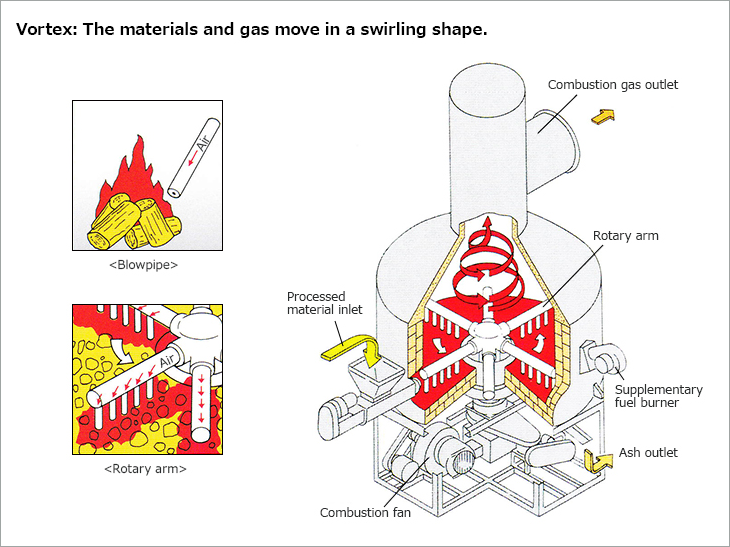

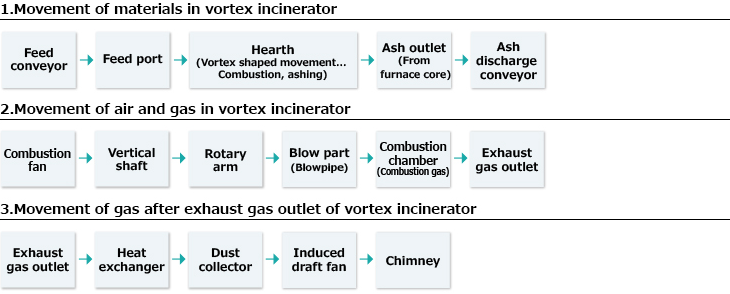

The vortex incinerator effectively incinerates sludge and other combustible fuels by using the same principle as a blowpipe fire starter, and using little or no supplementary fuel.
The vortex incinerator effectively incinerates sludge and other combustible fuels by using the same principle as a blowpipe fire starter, and using little or no supplementary fuel.

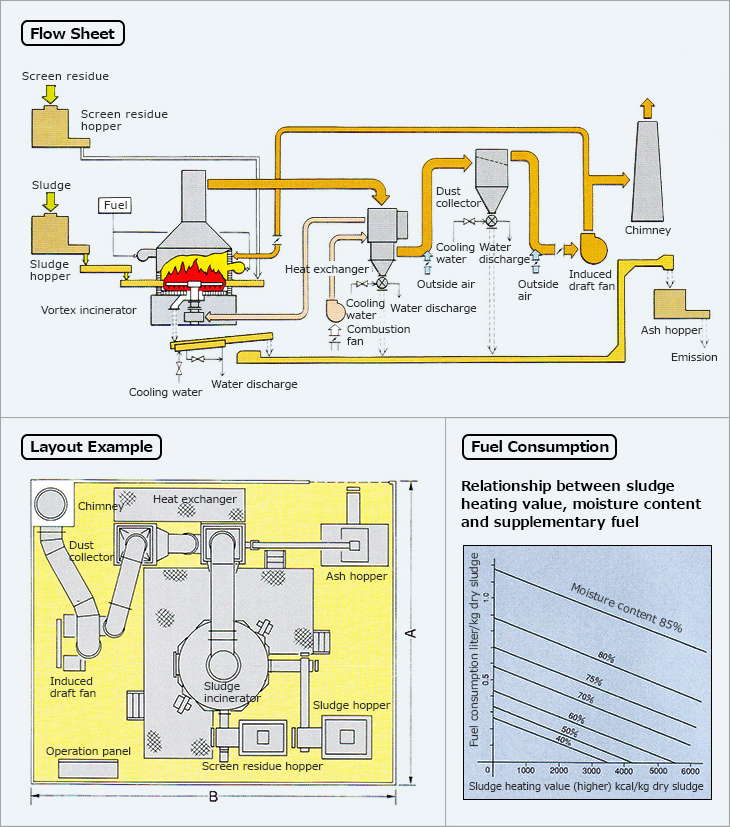

- A. When the fed materials have a high moisture content and are sticky, etc., some of the incineration ash may be circulated and mixed into the materials.
- B. Outside air, deodorizing gas or combustion gas, etc., can be used with the combustion fan.
- C. The exhaust gas of the vortex incinerator can be used as the heat source for a sludge dryer, etc.

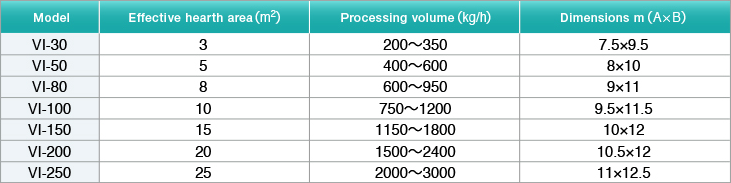

- 1. In addition to the above, model types from VI-10 to VI-300 are available.
- 2. The dimensions are described for the layout example above, but they vary according to the hopper capacity and number of hoppers.
- 3. The furnace model is selected according to the moisture content and amount of solids.
- 4. The processing volume described above is for processed materials with a moisture content of 30 to 70%.
