Vortex Dryer and Incinerator|YAMATO SANKO

1. Operation is easy because the system is automated and continuous.
2. The short heat-up time saves energy.
3. Because complete combustion is performed, the ignition loss of the incineration ash is minimized.
4. Because the inside of the furnace is agitated, clinker generation is low.
5. Energy is saved because the combustion gas from the incinerator furnace is used efficiently in the dryer.
6. Energy is saved because a deodorizing furnace is installed in the upper area of the incinerator furnace.
7. Proper exhaust treatment is performed to prevent secondary pollution. (Complies with regulation values)
8. To also enable fertilizer production, the system can be easily switched between the drying and incineration processes.
9. Because the dryer is installed in front of the furnace, the system can be operated flexibly to match changes in the water content or processing amount.
10. An efficient layout minimizes the installation area.

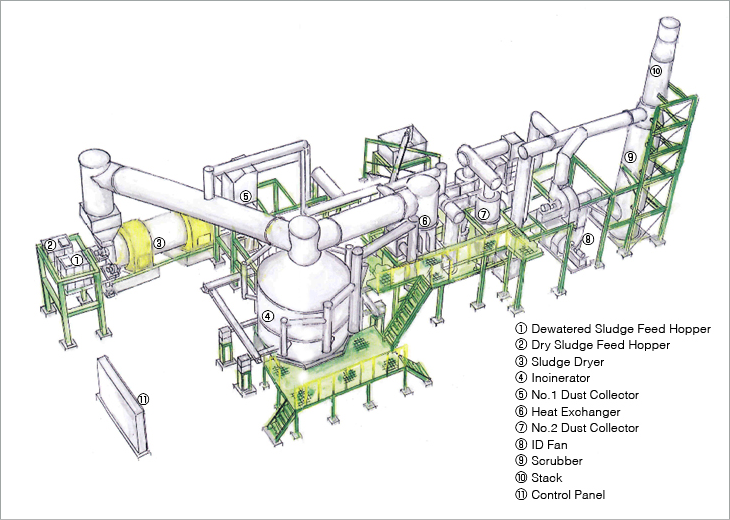

Overall View.

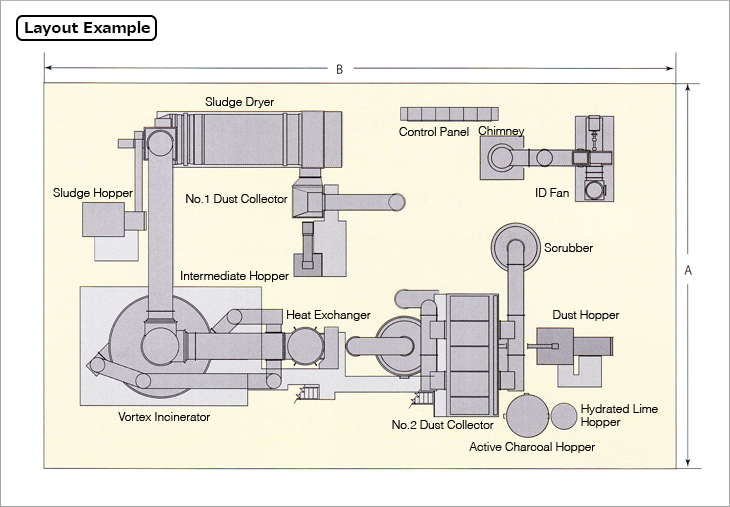

Layout Example

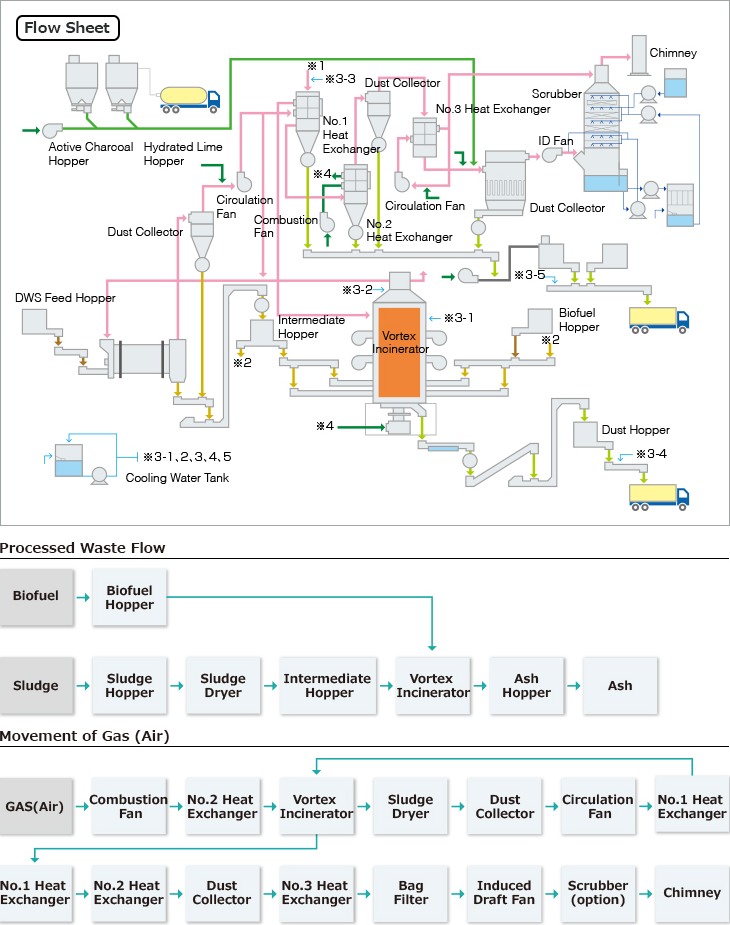

Flow Sheet

Vortex Drying Machine and Incinerator Furnace Combinations (Examples)

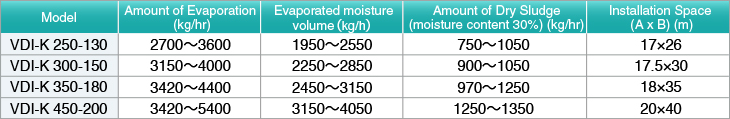

Specifications

Note 1: The above are only examples. Machines can be freely combined according to the characteristics of the processed waste.
Note 2: The performance values above are only guidelines. They vary according to the sludge condition (such as stickiness and heating value).
Note 3: The installation area can vary greatly according to factors such as the hopper size.
Note 4: We also provide the dryer machines and incinerator furnaces as stand-alone products.
