Taco Rotary Garbage Dryer

Taco Rotary Garbage Dryer

Taco Rotary Garbage Dryer.Optimal dryer for garbage, that resolves various issues related to garbage.

In recent years, the reduction of waste, recycling and effective use of energy have been promoted from the perspective of protecting the global environment. In addition, measures such as converting garbage into gas or refuse-derived fuel (RDF) are being developed to reduce the dioxins generated from combustion.
The taco rotary garbage dryer is the optimal dryer for resolving these various garbage-related issues.

Introduction

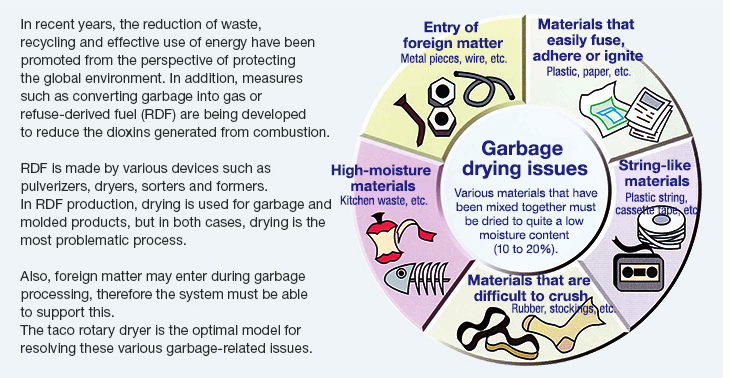

In recent years, the reduction of waste, recycling and effective use of energy have been promoted from the perspective of protecting the global environment. In addition, measures such as converting garbage into gas or refuse-derived fuel (RDF) are being developed to reduce the dioxins generated from combustion.RDF is made by various devices such as pulverizers, dryers, sorters and formers.In RDF production, drying is used for garbage and molded products, but in both cases, drying is the most problematic process.Also, foreign matter may enter during garbage processing, therefore the system must be able to support this.The taco rotary dryer is the optimal model for resolving these various garbage-related issues.Garbage drying issues. Various materials that have been mixed together must be dried to quite a low moisture content (10 to 20%). Entry of foreign matter. Metal pieces, wire, etc. Materials that easily fuse, adhere or ignite. Plastic, paper, etc. String-like materials Plastic string, cassette tape, etc. Materials that are difficult to crush. Rubber, stockings, etc. High-moisture materials. Kitchen waste, etc.

Features

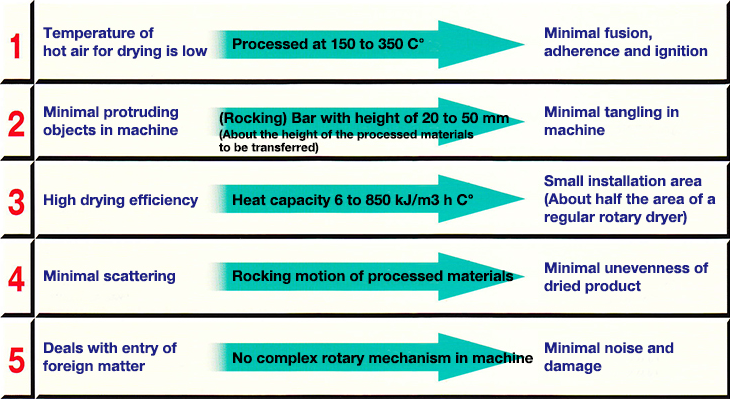

Features. 1.Temperature of hot air for drying is low Processed at 150 to 350℃ Minimal fusion, adherence and ignition. 2.Minimal protruding objects in machine (Rocking) Bar with height of 20 to 50 mm (About the height of the processed materials to be transferred) Minimal tangling in machine. 3.High drying efficiency Heat capacity 6 to 850 kJ/m3 h C°Small installation area (About half the area of a regular rotary dryer). 4.Minimal scattering Rocking motion of processed materials Minimal unevenness of dried product. 5.Deals with entry of foreign matter No complex rotary mechanism in machine Minimal noise and damage

Airflow/Processed Material Flow

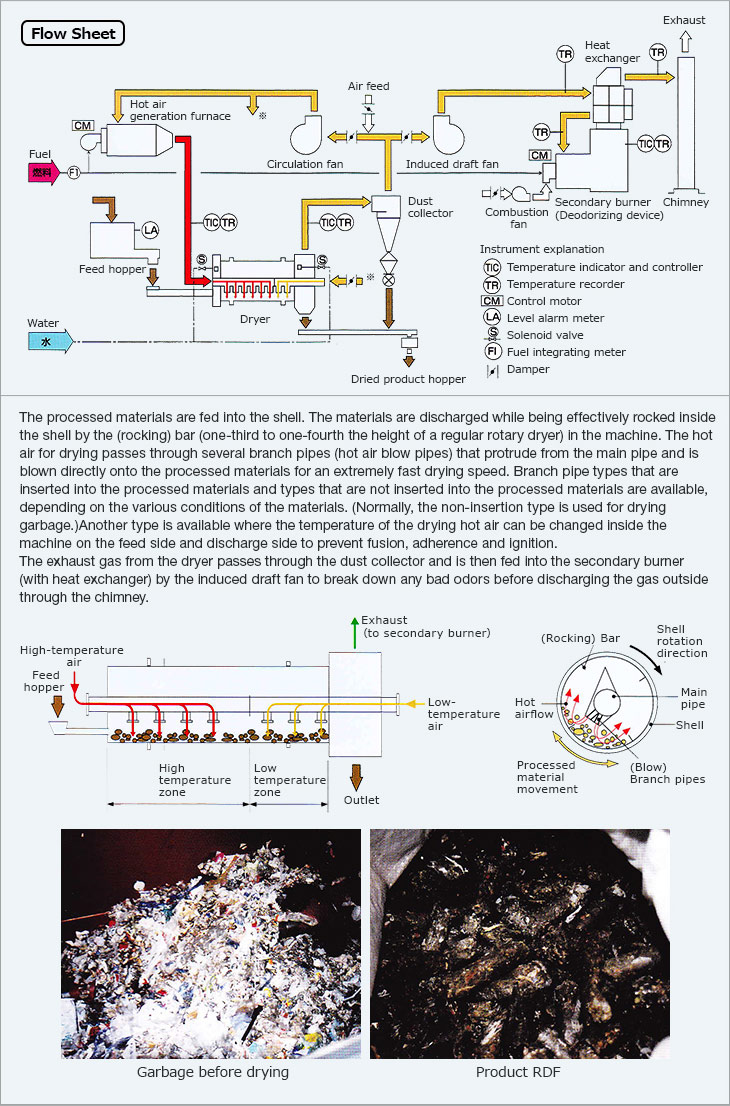

Flow Sheet. Fuel. Hot air generation furnace. Circulation fan. Air feed. Induced draft fan. Heat exchanger. Exhaust. Chimney. Secondary burner. (Deodorizing device). Combustion fan. Dust collector. Feed hopper. Dryer. Dried product hopper. Water. Instrument explanation. Temperature indicator and controller. Temperature recorder. Control motor. Level alarm meter. Solenoid valve. Fuel integrating meter. Damper.The processed materials are fed into the shell. The materials are discharged while being effectively rocked inside the shell by the (rocking) bar (one-third to one-fourth the height of a regular rotary dryer) in the machine. The hot air for drying passes through several branch pipes (hot air blow pipes) that protrude from the main pipe and is blown directly onto the processed materials for an extremely fast drying speed. Branch pipe types that are inserted into the processed materials and types that are not inserted into the processed materials are available, depending on the various conditions of the materials. (Normally, the non-insertion type is used for drying garbage.). Another type is available where the temperature of the drying hot air can be changed inside the machine on the feed side and discharge side to prevent fusion, adherence and ignition.The exhaust gas from the dryer passes through the dust collector and is then fed into the secondary burner (with heat exchanger) by the induced draft fan to break down any bad odors before discharging the gas outside through the chimney. High-temperature air. Feed hopper. Exhaust. (to secondary burner). (Rocking) Bar. Shell rotation direction. Low-temperature air. Hot airflow. Main pipe. Shell. (Blow) Branch pipes. Processed material movement. Outlet. Low temperature zone. High temperature zone. Garbage before drying. Product RDF.

Layout Diagram

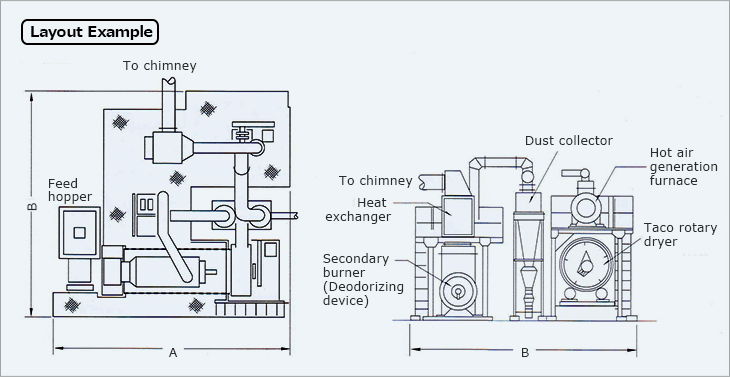

Layout Diagram. Layout Example. To chimney. Feed hopper. To chimney. Dust collector. Hot air generation furnace. Taco rotary dryer. Secondary burner. (Deodorizing device)

Models/Specifications

Models/Specifications.Model. Processing volume (kg/cycle). Evaporated moisture volume (kg/cycle). Shell volume (m3). Installation. dimensions (A×B).

  • Note 1: The evaporated moisture volume is based on an inlet moisture content of 55 to 60% (W.B.) and outlet moisture content of 10% (W.B.).
  • Note 2: Based on a drying hot air temperature of 350 to 400℃.
  • Note 3: The installation dimensions are for reference only. They differ according to the layout.
