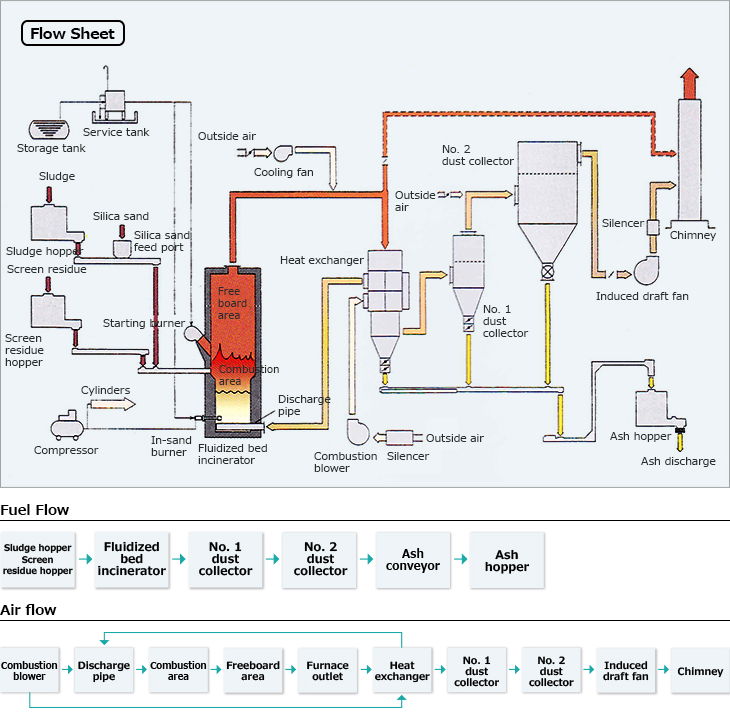

In the fluidized bed incinerator, a discharge pipe is installed at the bottom of the incinerator, which is lined with a refractory. A fluidized medium such as silica sand is made to flow and heated by air discharged from the discharge pipe. Materials such as sludge are fed into the fluidized medium and incinerated.
Incineration in the fluidized bed incinerator is fast because the sludge or other materials make contact with the hot combustion gas and the fluidized medium.
The incineration ash in the fluidized bed incinerator becomes a powder in the exhaust gas that is collected by the dust collector. Therefore, special measures must be taken for the dust collector.
Incineration in the fluidized bed incinerator is fast because the sludge or other materials make contact with the hot combustion gas and the fluidized medium.
The incineration ash in the fluidized bed incinerator becomes a powder in the exhaust gas that is collected by the dust collector. Therefore, special measures must be taken for the dust collector.
[Main Applications]
- Human waste sludge
- Sewage sludge
- Food sludge
- Paper manufacturing sludge
- Various strained lees
- Other types of sludge
- 1. Incinerates evenly.
- 2. High furnace load reduces the required hearth area.
- 3. Incinerates with a low air ratio, which saves energy.
- 4. High combustion temperature eliminates the need for a deodorizing device.
- 5. Recovers heat for high thermal efficiency.
- 6. Reduces the ignition loss of the combustion ash.
- ■Human waste sludge
- ■Sewage sludge
- ■Food sludge
- ■Paper manufacturing sludge
- ■Various strained lees
- ■Other types of sludge

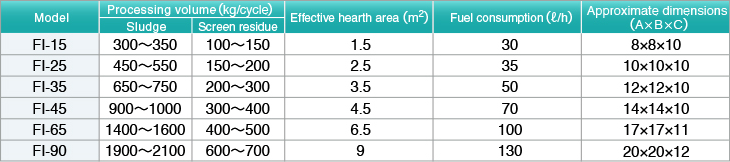

- * Based on a sludge moisture content of 80% (WB) and heating value of 3600 kcal/kg d.s., and a screen residue moisture content of 60％ (WB) and heating value of 3800 kcal/kg d.s.
- * The processing capacity is for the combined processing volume for sludge and screen residue.
- * The processing volume varies according to the moisture and heating value of the processed materials.
- * The installation space varies greatly according to the hoppers or dust collector models, etc.
- * Models other than those above are also available.
